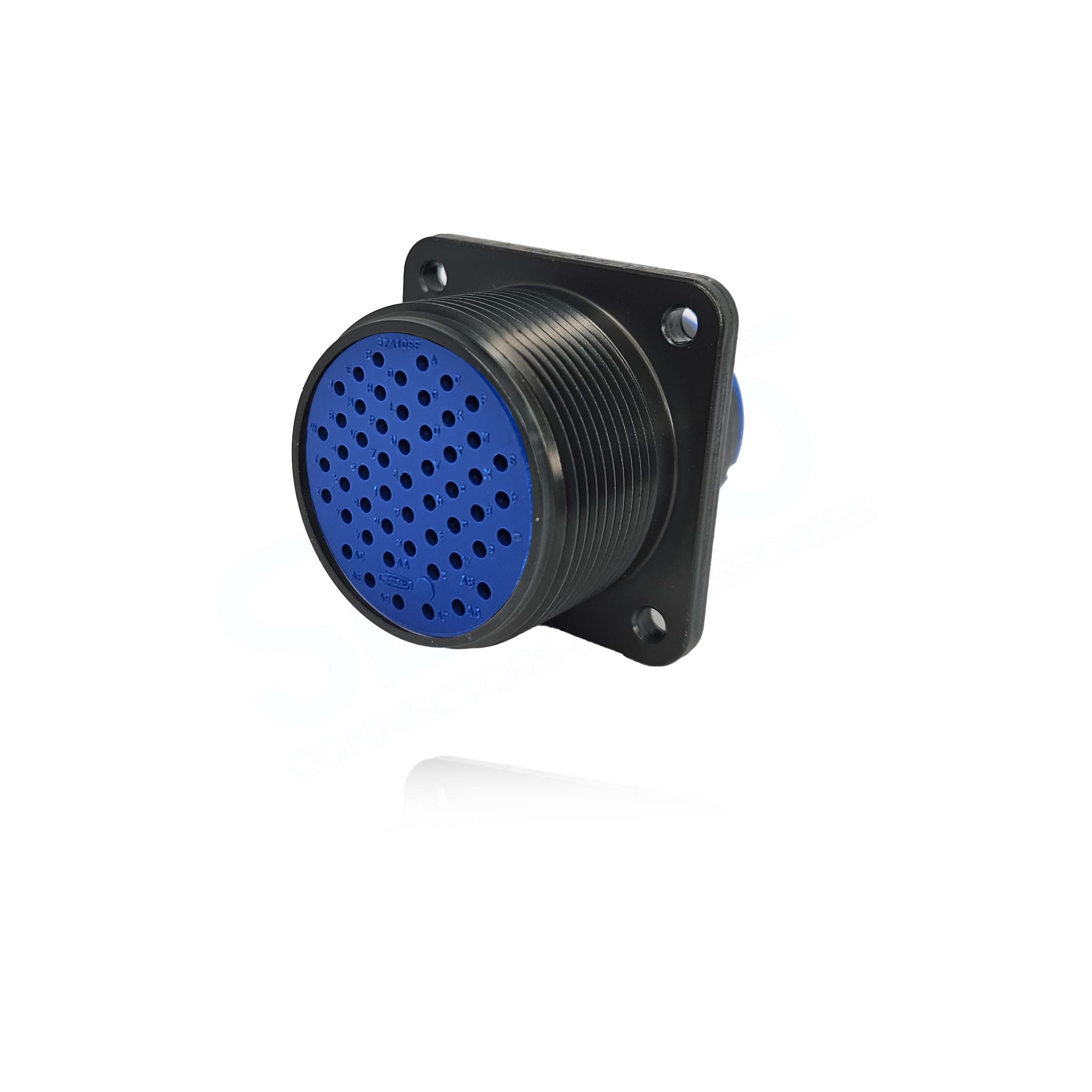

DMS3102A32A-10S
D/MS3102A32A-10S Box Mounting Receptacle, Trivalent Chromate, Shell Size 32 with 54#16 Socket Contacts.
Click on part number below to check availabilty of accessory:
RoHS Compliant: Yes
Technical Specifications
| Manufacturer | Fujikura (FJK) |
|---|---|
| Connector Style | Box Mount Receptacle |
| Contact Plating | Silver (Standard) |
| Contacts Supplied | Yes |
| Coupling Style | Threaded |
| Insert Arrangement | 32A-10 |
| Shell Material | Aluminium Alloy / Zinc |
| Shell Plating | Trivalent Chromium Treatment (Black) |
| Shell Size | 32 |
Environmental Specifications
| RoHS Compliant | Yes |
|---|---|
| Insulation Resistance | 5000MΩ min. at 500V DC |
Quality & Compliance
| Qualified | MIL-DTL-5015 |
|---|
