Manufacturer

Angle

Straight

Colour

Black

Connector Style

Box Mount Receptacle

Contact Gender

Pin – Male

Contact Plating

Silver (Standard)

Contact Size

73#16

Contacts Supplied

Yes

Coupling Style

Threaded

Insert Keyway

W

Insert Arrangement

36-73

No of Contacts

73

Insulation Resistance

5000M? min. at 500V DC

Qualified

MIL-DTL-5015

RoHS Compliant

Yes

Series

D/MS A/B

Shell Material

Shell Plating

Trivalent Chromium Treatment (Black)

Shell Size

Specification

MIL-DTL-5015

Termination Method

Solder

Operating Temperature

– 55?C – + 125?C – -67?F – +257?F

Fujikura (DDK)

D/MS3102A36-73PW

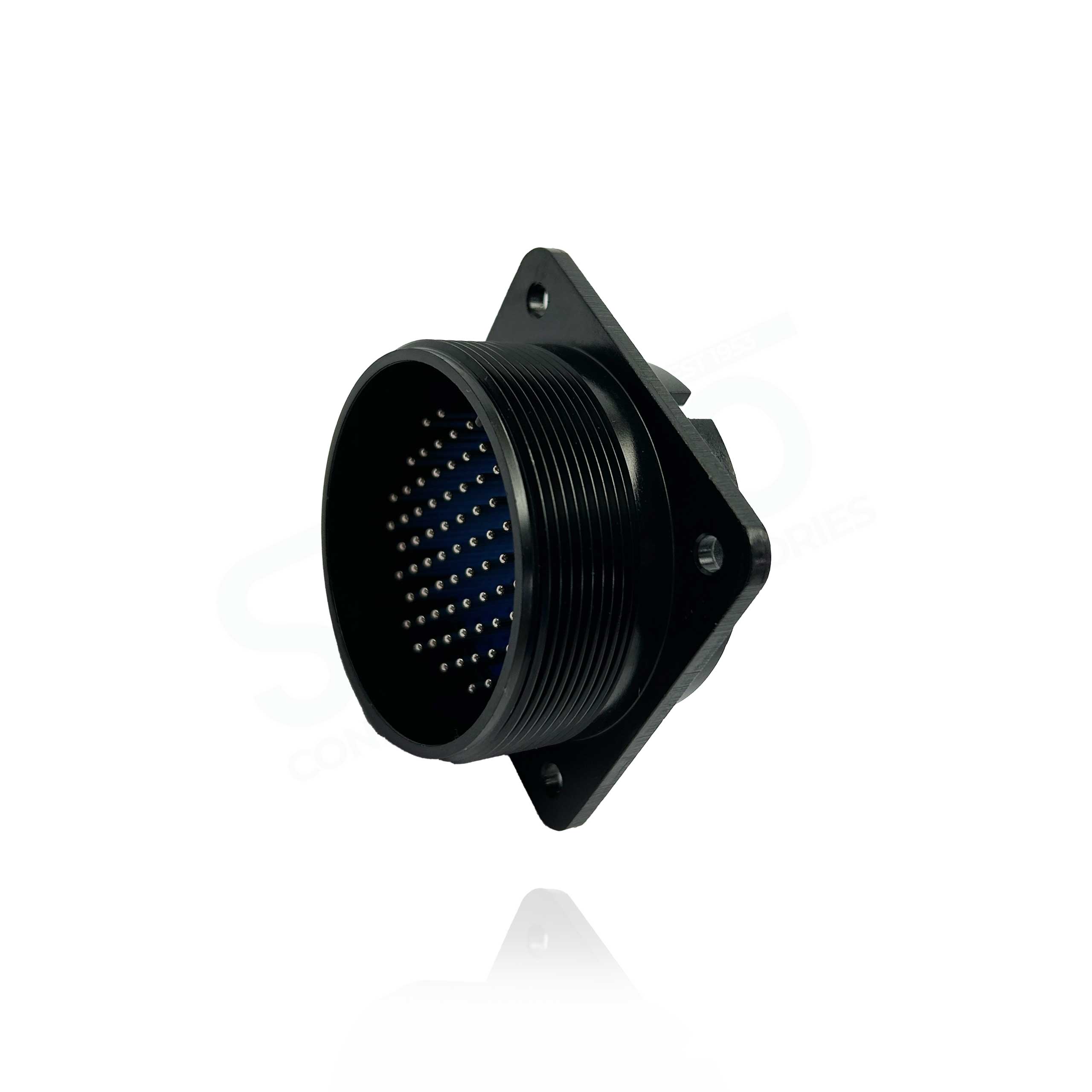

D/MS3102A36-73PW Box Mount Receptacle, Black Trivalent Chromate, Shell Size 36 with 73#16 Pin Contacts, W Orientation.

Manufacturer: Fujikura
RoHS:
Datasheet: D/MS3102A36-73PW Datasheet
Additional:

11 in stock (can be backordered)

Datasheet

DMS Datasheet

Insert Arrangement

36 73 Contact Layout DMS5015

Mating Products

dms3106a36 73S D/MS3106A36-73SW

Straight Plug 36 SOCKET

dms3106b36 73S D/MS3106B36-73SW

Straight Plug, Split Backshell 36 SOCKET

dms3108b36 73S D/MS3108B36-73SW/mark>

Right Angle Plug, Split Backshell 36 SOCKET

Accessories

DMS25043 Dust Cap
Dust Cap

D/MS25043-36DK
