DMS3106A20-4S(D190)

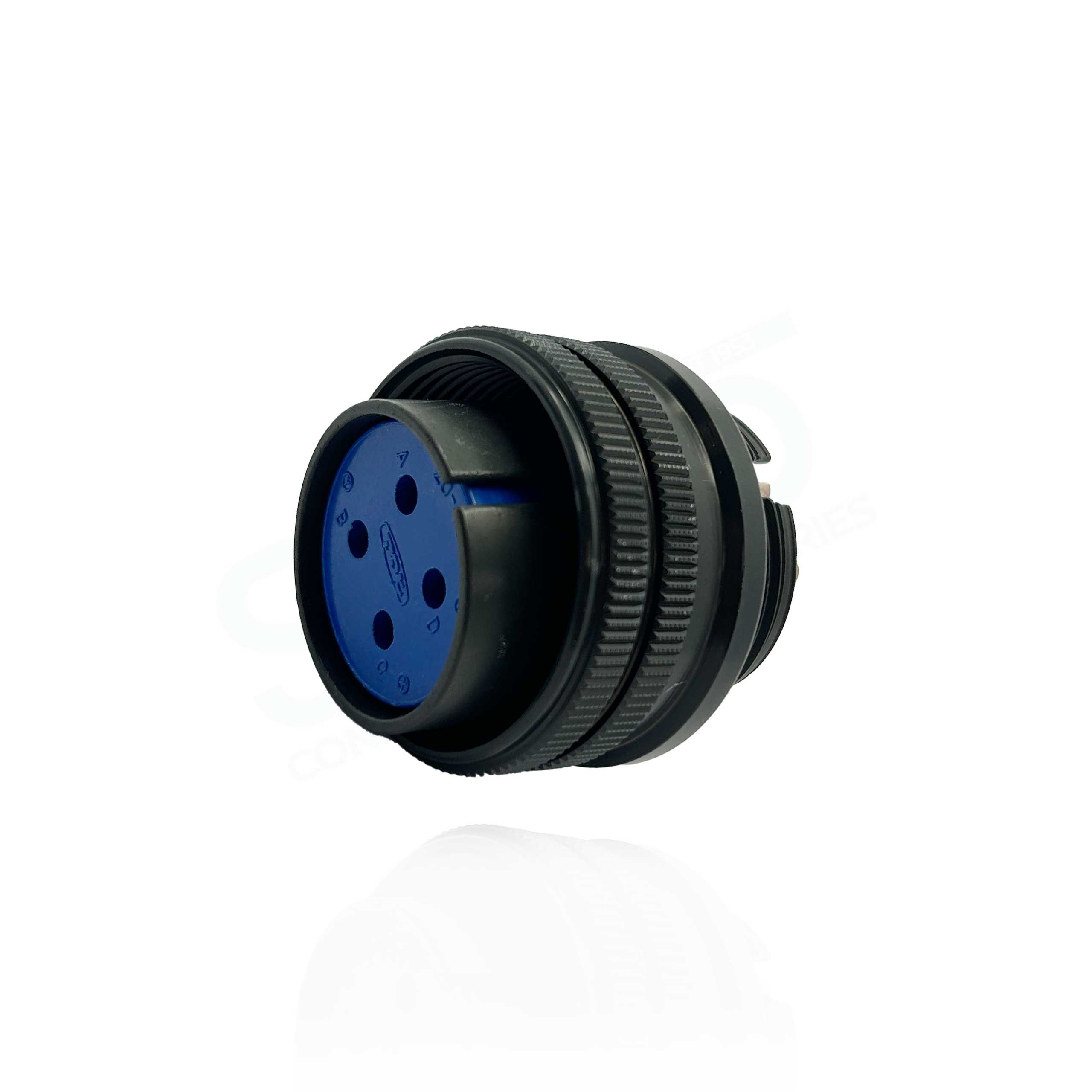

D/MS3106A20-4S(D190) / D/MS3106A20-4S(D190)(R1), Moistureproof Plug, Trivalent Chromate, Shell Size 20 with 4#12 Socket Contacts.
RoHS Compliant: Yes
Technical Specifications
| Manufacturer | Fujikura (FJK) |
|---|---|
| Connector Style | Straight Plug |
| Contact Gender | Socket – Female |
| Contact Plating | Silver (Standard) |
| Contact Size | 4#12 |
| Contacts Supplied | Yes |
| Coupling Style | Threaded |
| Insert Keyway | Normal |
| Insert Arrangement | 20-4 |
| No of Contacts | 4 |
| Shell Material | Aluminium Alloy / Zinc |
| Shell Plating | Trivalent Chromium Treatment (Black) |
| Shell Size | 20 |
| Termination Method | Solder |
Environmental Specifications
| Operating Temperature | – 55°C – + 125°C – -67°F – +257°F |
|---|---|
| RoHS Compliant | Yes |
| Insulation Resistance | 5000MΩ min. at 500V DC |
Quality & Compliance
| Qualified | MIL-DTL-5015 |
|---|---|
| Series | D/MS A/B |
