Fujikura (FJK)

DMS3106B16S-1P

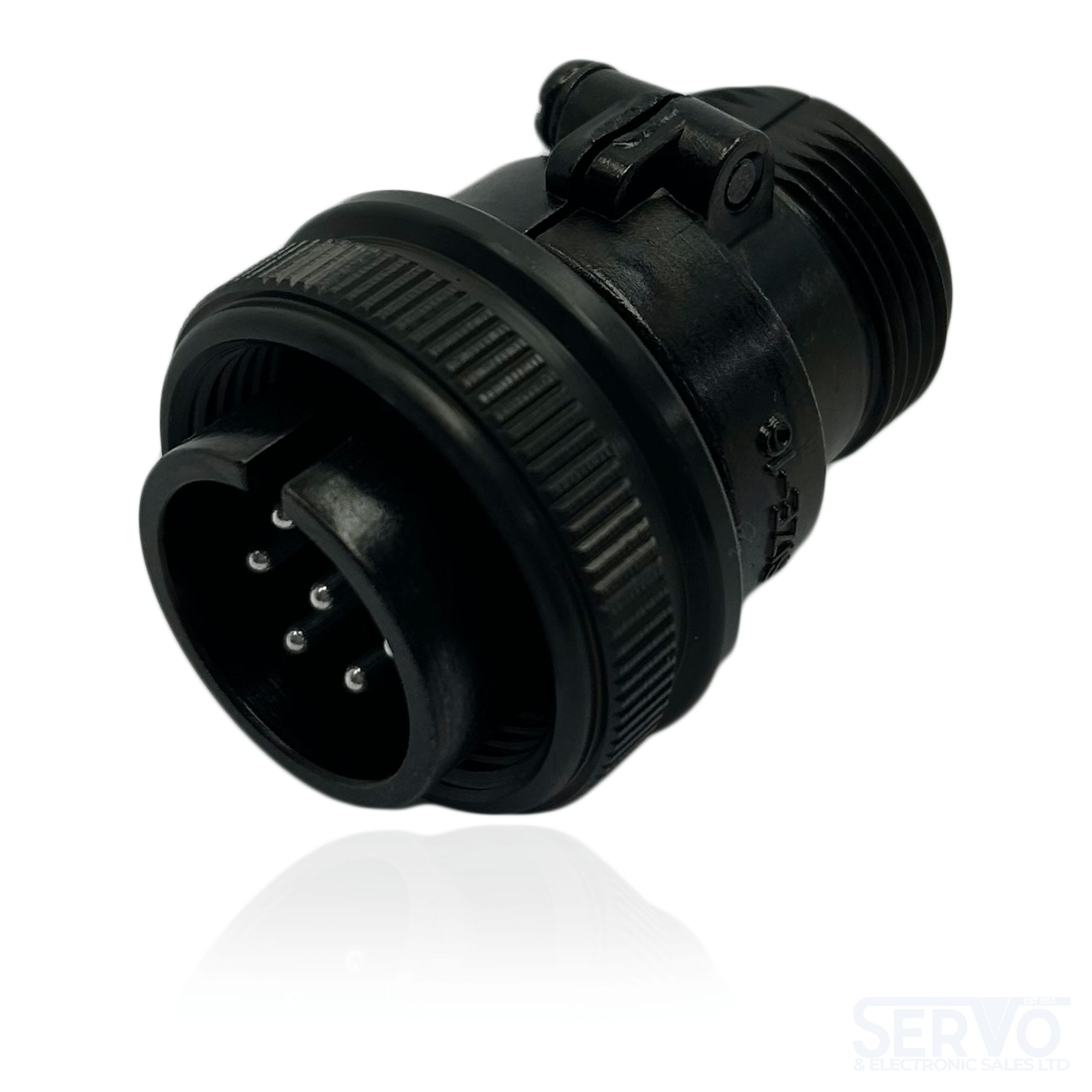

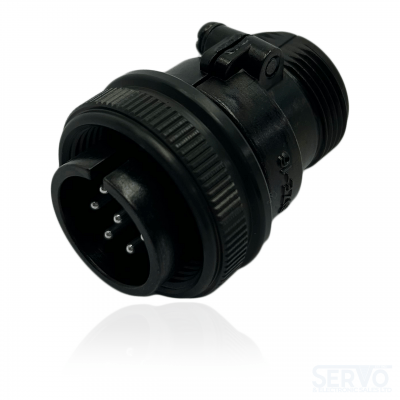

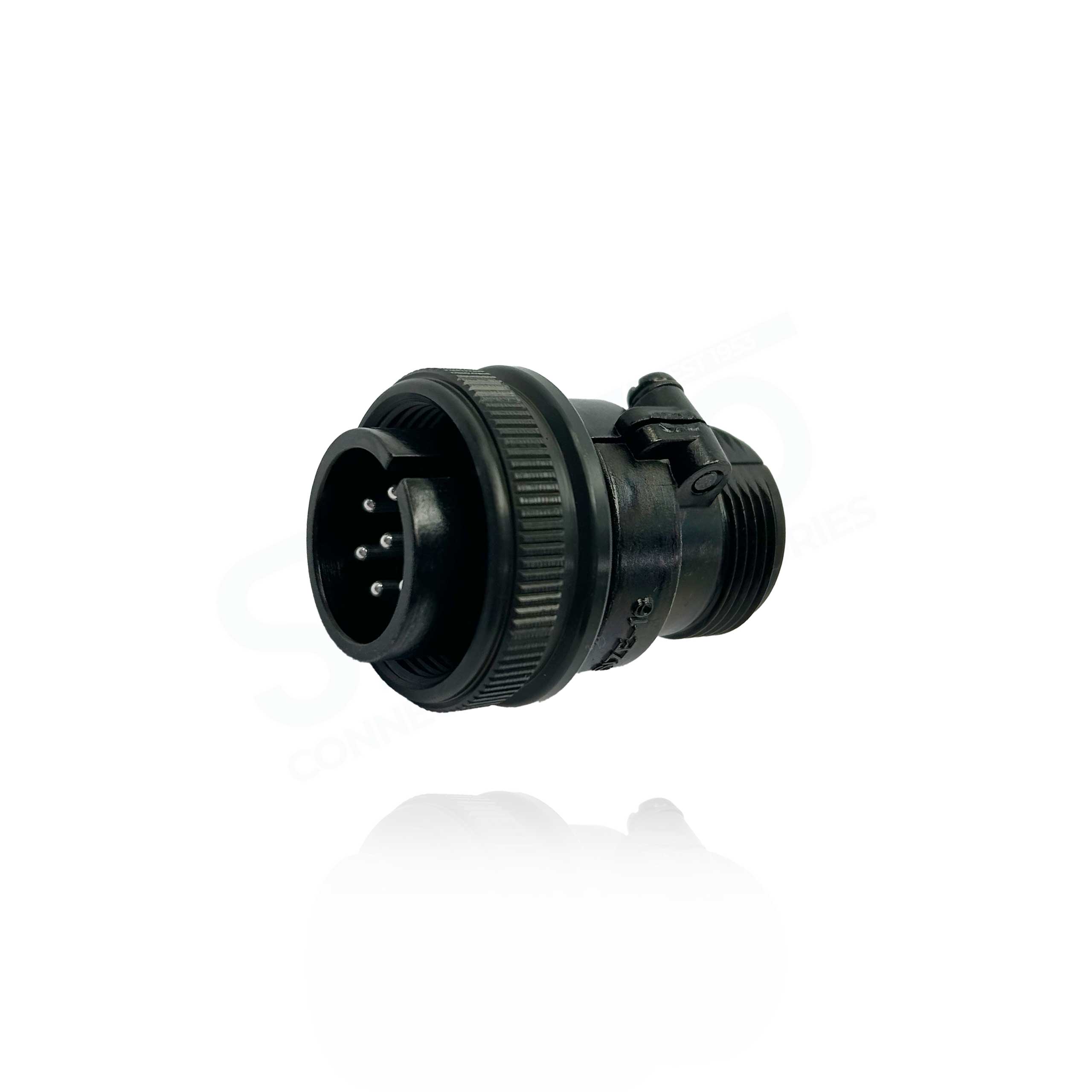

D/MS3106B16S-1P Straight Plug with Split Backshell, Black Trivalent Chromate, Shell Size 16S with 7#16 Pin Contacts.

RoHS: Yes

Ordering Information

21 in stock (can be backordered)

Estimated Factory Lead Time: Please contact the office for more information.

Require more? Enquire Here

Technical Specifications

ManufacturerFujikura (FJK)
SeriesD/MS A/B
Connector StyleStraight Plug Split Backshell
Contacts SuppliedYes
Contact GenderPin - Male
Contact Size7#16
No of Contacts7
Termination MethodSolder
Coupling StyleThreaded
Insert Arrangement16S-1
Insert KeywayNormal
Shell Size16S
Shell MaterialAluminium Alloy / Zinc
Shell PlatingTrivalent Chromium Treatment (Black)

Environmental Specifications

Operating Temperature-55°C to +125°C / -67°F to +257°F
Insulation Resistance5000MΩ min. at 500V DC
RoHS CompliantYes

Quality & Compliance

QualifiedMIL-DTL-5015
Specification-
VAD24 Hours
