Eaton Souriau
DX1H-10B-5-PN

DX1H-10B-5-PN

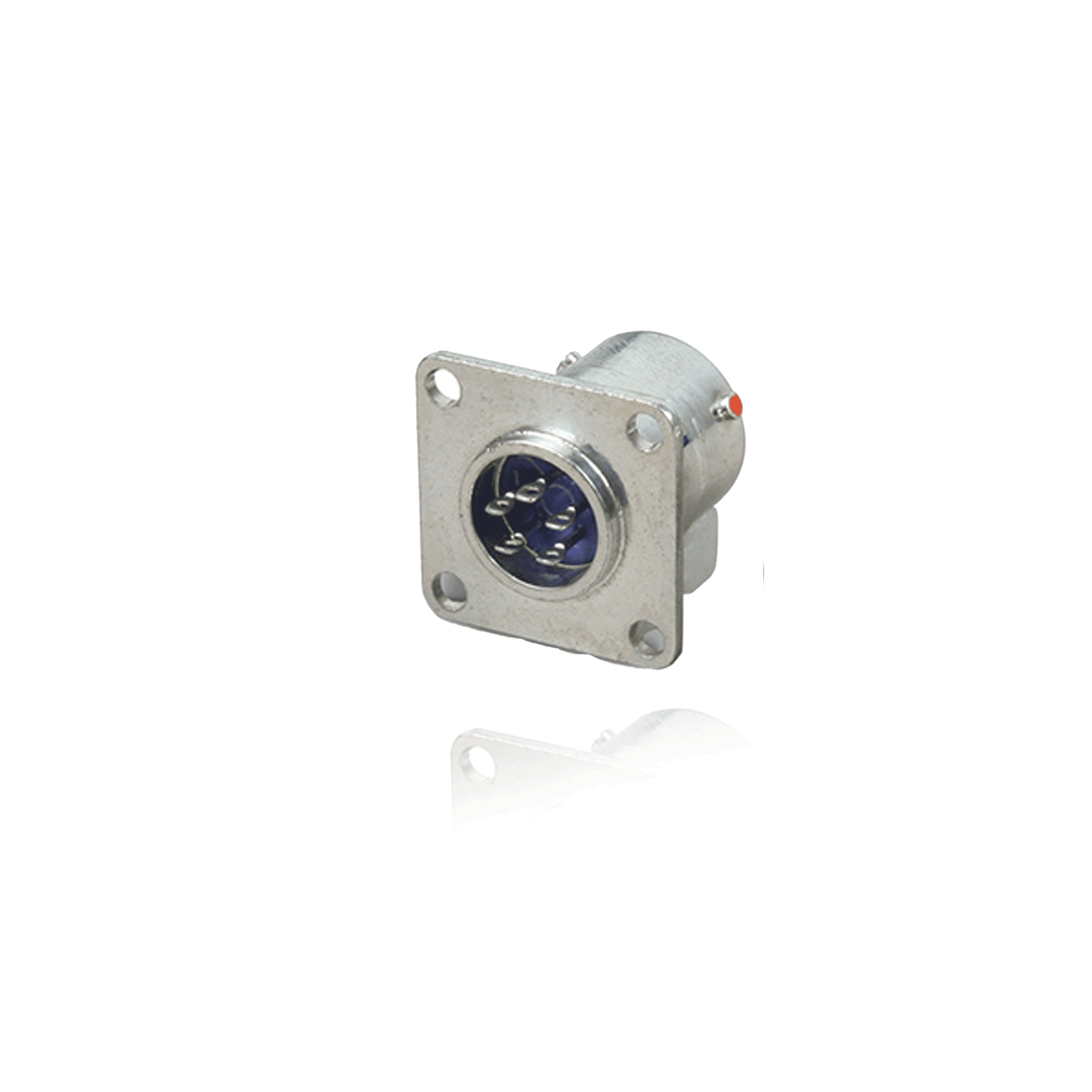

DX1H-10B-5-PN Solder Mount Bayonet, Hermetic MIL-DTL-27034B Type, Shell Size10 with 5#20Pin Contacts, Normal Orientation.

RoHS Compliant: Yes

Ordering Information

Available to order

Estimated Factory Lead Time: Please contact the office for more information.

Require more? Enquire Here

Technical Specifications

ManufacturerDetoronics
Connector StyleSquare Flange Receptacle
Contact GenderPin – Male
Contact Size5#20
Contacts SuppliedYes
Coupling StyleBayonet
Insert KeywayNormal
Insert Arrangement10-5
Shell MaterialCarbon Steel
Shell Size10

Environmental Specifications

Operating Temperature-55°C +260°C – -67°F +500°F
RoHS CompliantYes

Quality & Compliance

QualifiedNo
SpecificationMIL-STD-26500 Type
SeriesDX Series
