DX1H-12T-3-PN

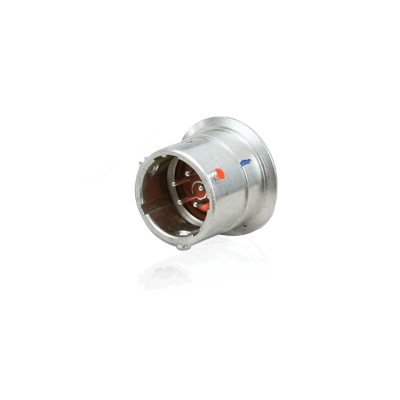

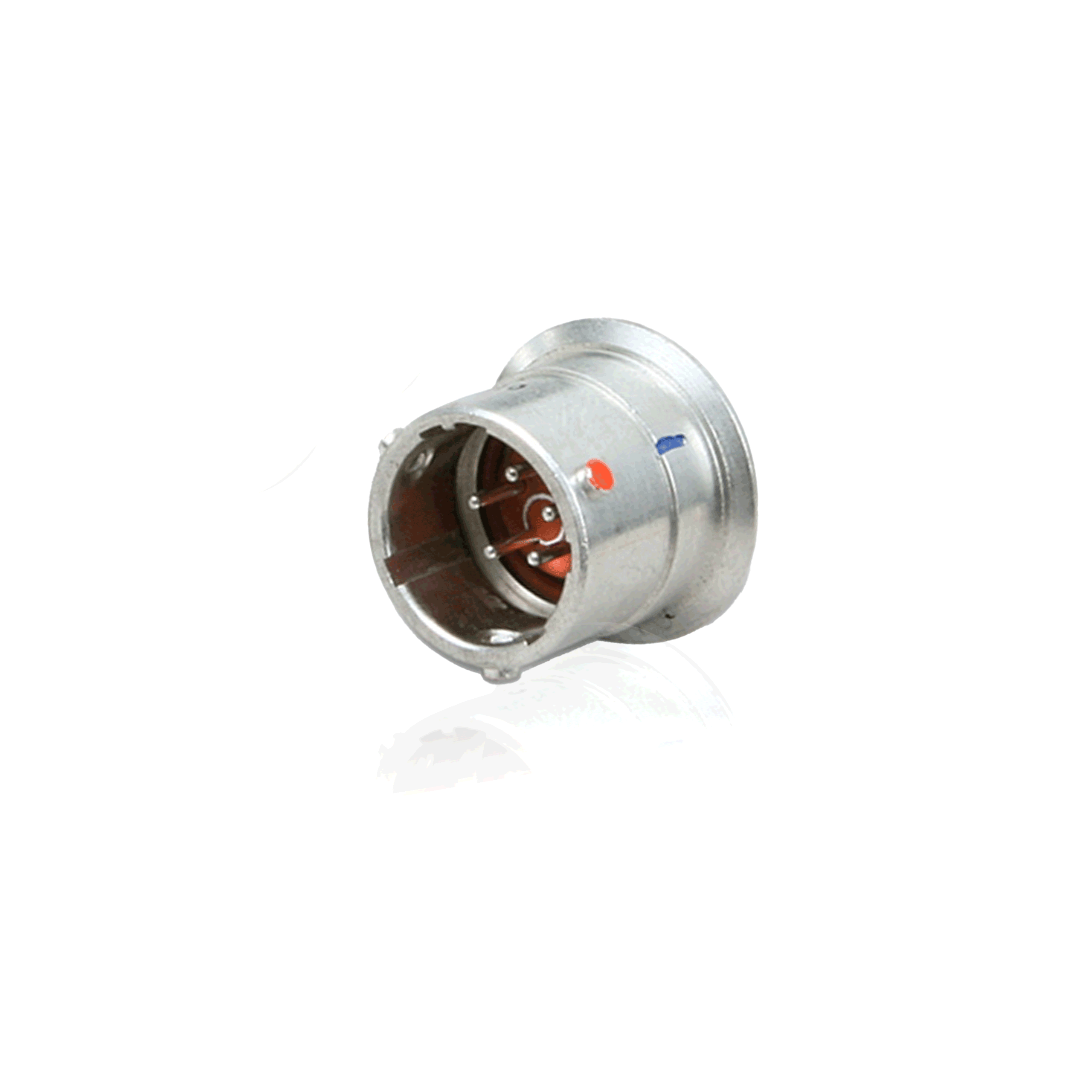

DX1H-12T-3-PN Solder Mount Threaded, Hermetic MIL-DTL-27034T Type, Shell Size 12 with 3#16Pin Contacts, Normal Orientation.
RoHS Compliant: Yes
Technical Specifications
| Manufacturer | Detoronics |
|---|---|
| Connector Style | Solder Mount |
| Contact Gender | Pin – Male |
| Contact Size | 3#16 |
| Contacts Supplied | Yes |
| Coupling Style | Threaded |
| Insert Keyway | Normal |
| Insert Arrangement | 12-3 |
| Shell Material | Carbon Steel |
| Shell Size | 12 |
Environmental Specifications
| Operating Temperature | -55°C +260°C – -67°F +500°F |
|---|---|
| RoHS Compliant | Yes |
Quality & Compliance
| Qualified | No |
|---|---|
| Specification | MIL-STD-26500 Type |
| Series | DX Series |
