EN3645K0AN35MN

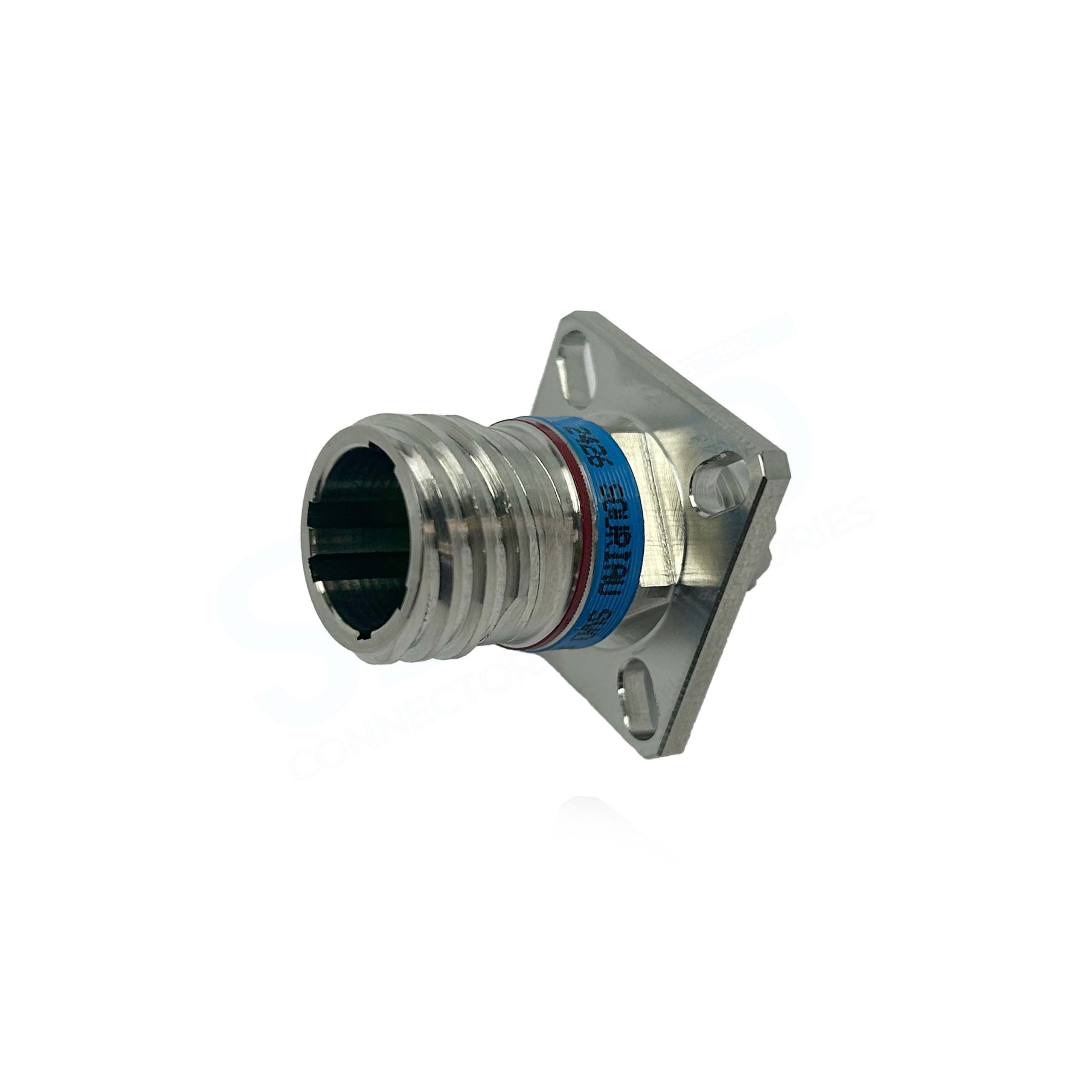

EN3645K0AN35MN Square Flange Receptacle, Shell Size 09 with Passivated Stainless Steel (K) Plating, 6#22D Pin Contacts, N Orientation. EN3645K0AN35MN includes contacts and tooling.
| VAD Assembly In: | 72 Hrs |
| For Higher Quantities: | Request Lead Time |
| Manufacturer: | Eaton Souriau (VAD) |
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Square Flange Receptacle |
| Contact Gender | Pin – Male |
| Contact Size | 6#22D |
| Contacts Supplied | Yes |
| Insert Keyway | Normal |
| Insert Arrangement | 09 – 35 |
| No of Contacts | 6 |
| Shell Material | Stainless Steel |
| Shell Plating | Passivated (K) |
| Shell Size | 9 (A) |
| Termination Method | Crimp |
| Mating Cycles | 500 |
| Shell Continuity | 10 mΩ |
| Shielding | 45 db at 10 GHz |
Environmental Specifications
| Operating Temperature | -65°C +200°C – -85°F +392°F |
|---|---|
| RoHS Compliant | Yes |
| Salt Spray | 500 Hours |
| Sealing | IP67 |
Quality & Compliance
| Qualified | Yes – Military Spec QPL |
|---|---|
| Specification | MIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC |
| Series | MIL-DTL-38999 Series III |
