EN3645K6BN35AN

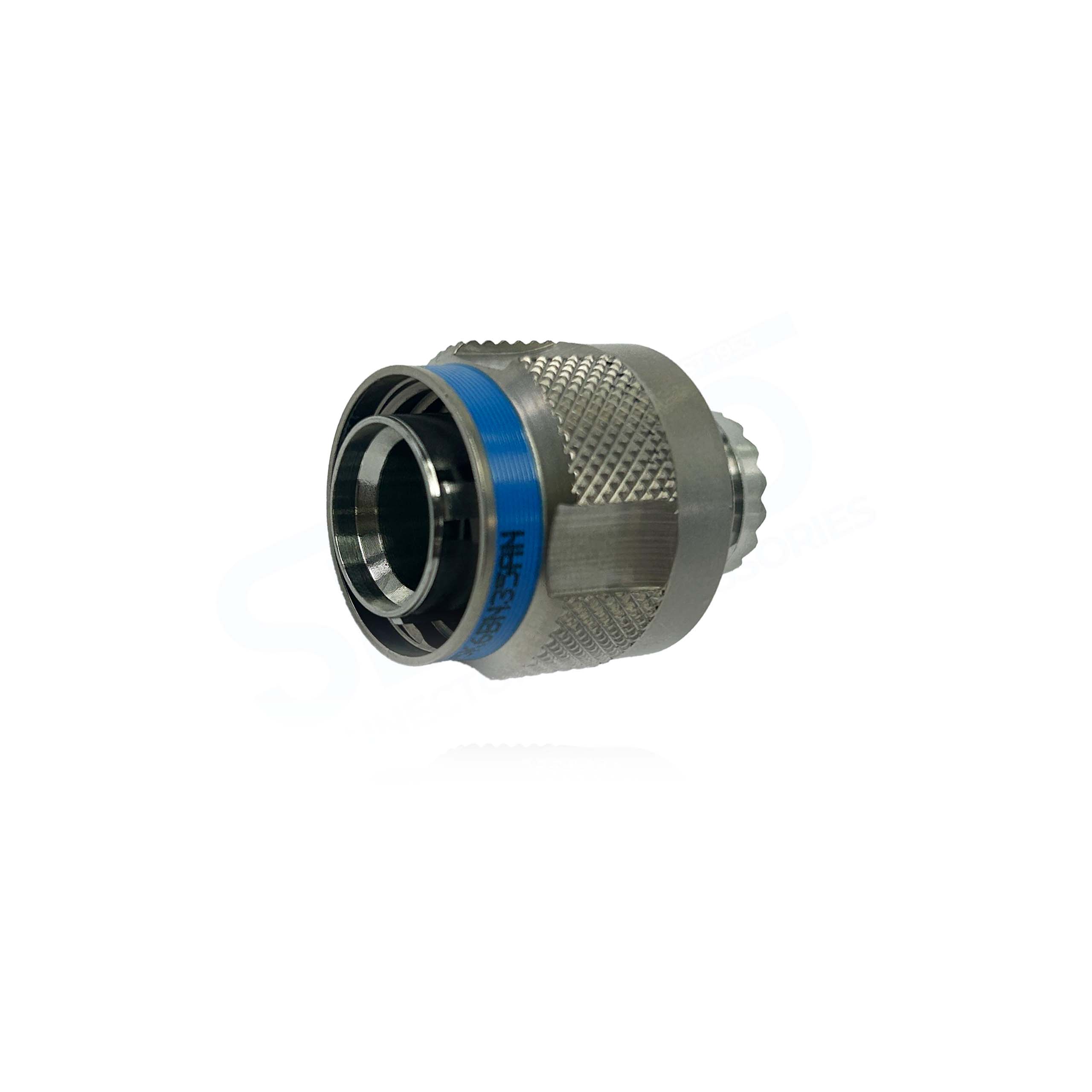

EN3645K6BN35AN, Plug, Shell Size 11 with Passivated Stainless Steel (K) Plating, Less 13#22D Pin Contacts, N Orientation.
| RoHS Compliant: |  |
|---|---|
| Datasheet: | 8D Series Datasheet |
| Additional: |  |
RoHS Compliant: Yes
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Square Flange Receptacle |
| Contact Gender | Less Pin Contacts |
| Contact Size | 13#22D |
| Contacts Supplied | No |
| Insert Keyway | N |
| Insert Arrangement | 11-35 |
| No of Contacts | 13 |
| Shell Material | Stainless Steel |
| Shell Plating | Passivated (K) |
| Shell Size | 11 (B) |
| Termination Method | Crimp |
Environmental Specifications
| Operating Temperature | -65°C +200°C – -85°F +392°F |
|---|---|
| RoHS Compliant | Yes |
Quality & Compliance
| Qualified | Yes – Military Spec QPL |
|---|---|
| Specification | MIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC |
| Series | MIL-DTL-38999 Series III |
