EN3645K7AN35FN

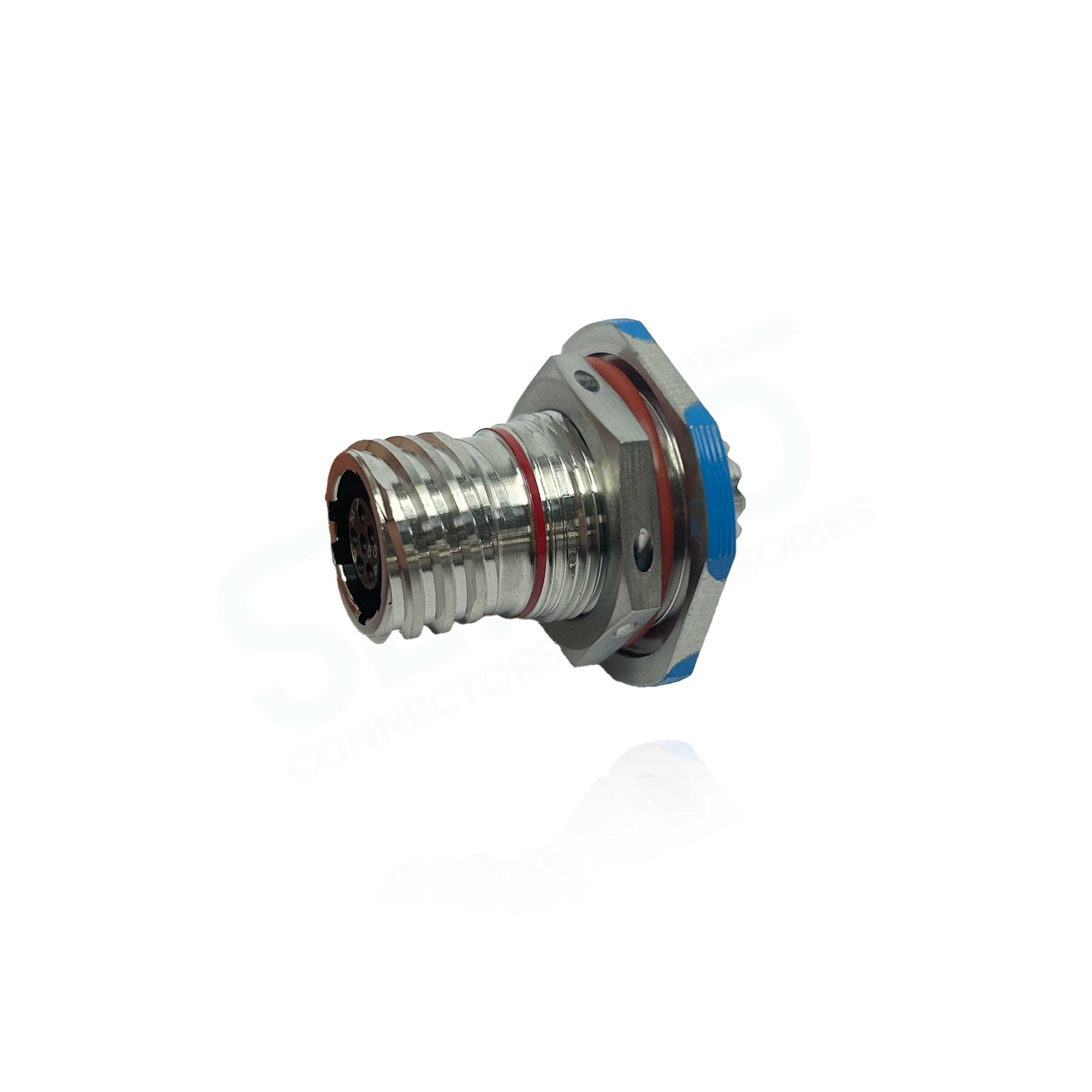

EN3645K7AN35FN, Jam Nut Receptacle, Shell Size 09 with Passivated Stainless Steel (K) Plating, with 6#22D Socket Contacts, N Orientation.
| VAD Assembly In: | 72 Hrs |
| For Higher Quantities: | Request Lead Time |
| Manufacturer: | Eaton Souriau (VAD) |
Technical Specifications
| Contact Gender | Socket – Female |
|---|---|
| Contact Size | 6#22D |
| Contacts Supplied | Yes |
| Insert Keyway | Normal |
| Insert Arrangement | 09-35 |
| No of Contacts | 6 |
| Shell Material | Stainless Steel |
| Shell Plating | Passivated (K) |
| Shell Size | 9 (A) |
| Termination Method | Crimp |
Environmental Specifications
| Operating Temperature | -55°C to +200°C – -65°F to +392°F |
|---|---|
| RoHS Compliant | Yes |
| Sealing | IP67 |
Quality & Compliance
| Qualified | Yes – Military Spec QPL |
|---|---|
| Specification | MIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC |
| Series | MIL-DTL-38999 Series III |
