ESC10SE62461P60
ESC10SE62461P60 Plug with RFI Screening Ring, 260?C stainless steel, Shell Size 24 with 61#20 Pin,6 Orientation, Standard connector delivered without contacts.
[table “” not found /]
Technical Information
| Manufacturer: | Eaton Souriau |
| Shell Style: | Plug with RFI Screening Ring |
| Shell Material: | Stainless Steel |
| Shell Plating: | Passivated |
| Coupling Method: | Screw Coupling |
| Shell Size: | 24 |
| Contact Gender: | Pin |
| Contact Size: | 61#20 |
| Contact Gender: | Delivered Less Contacts |
| Mating Cycles: | 500 |
| Operating Temperature: | -65? to +260?C (-149? to +500?F) |
| Salt Spray: | 500 hrs |
| Insert Arrangement: | 24-61 |
| RoHS Compliant: | Yes |
| Series: | ESC10 Series |
| Specification: | ESC10 |
| Cross Reference: | 85334ES2461P6L, EN2997SE02461A6 |

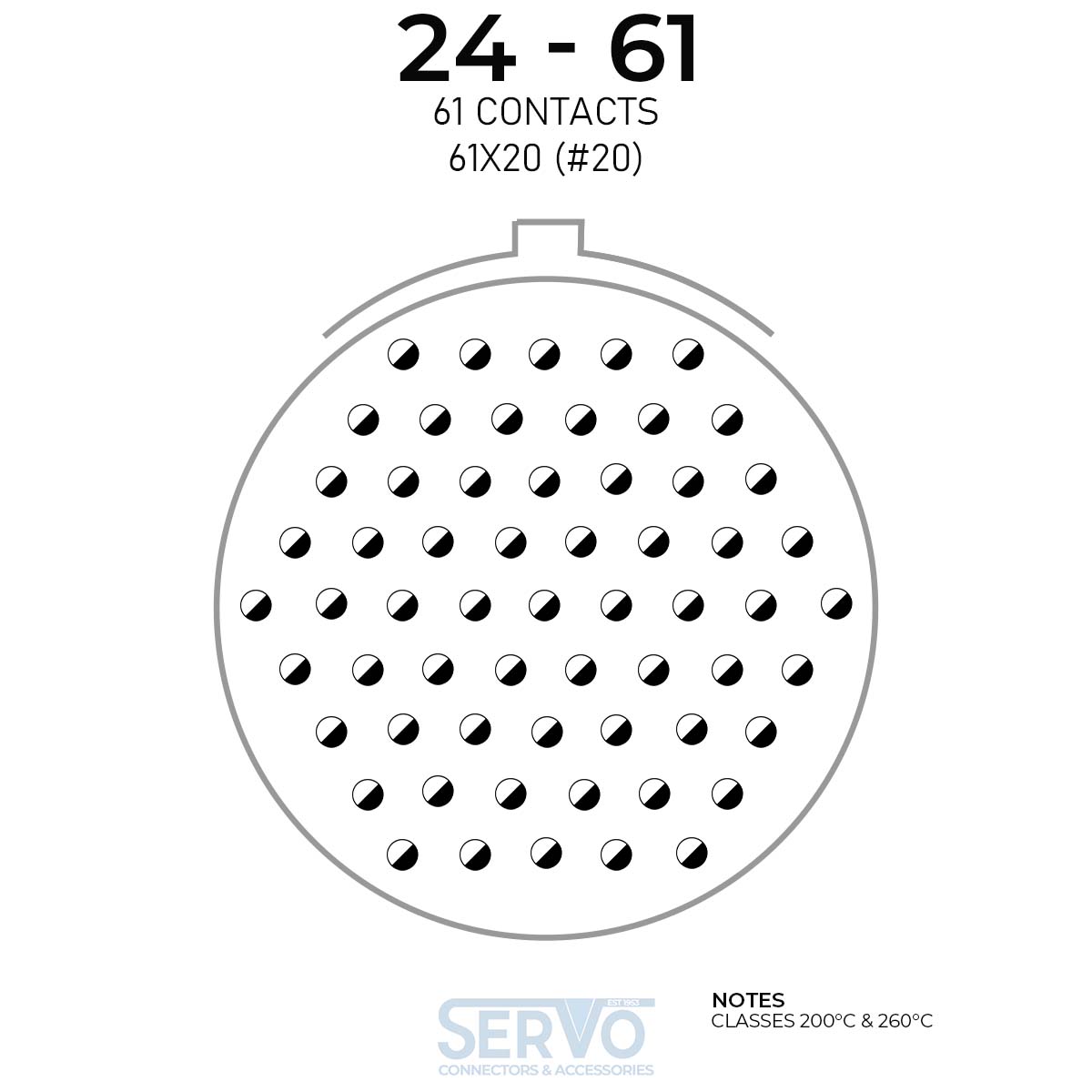

ESC10 Datasheet | Contact Layout
|
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|
