JMSP2532FD
JMSP2532FD, Straight Plug, Shell Size 25 with 32#20 Socket Contacts, Trivalent Chromium Treatment Black.
| RoHS Compliant: |  |
|---|---|
| Datasheet: | JMSP2532FD Datasheet |
Available to order
Technical Specifications
| Manufacturer | Fujikura (FJK) |
|---|---|
| Connector Style | Straight Plug |
| Contact Gender | Socket - Female |
| Contact Size | 32#20 |
| Contacts Supplied | Yes |
| Coupling Style | Threaded |
| Insert Keyway | Normal |

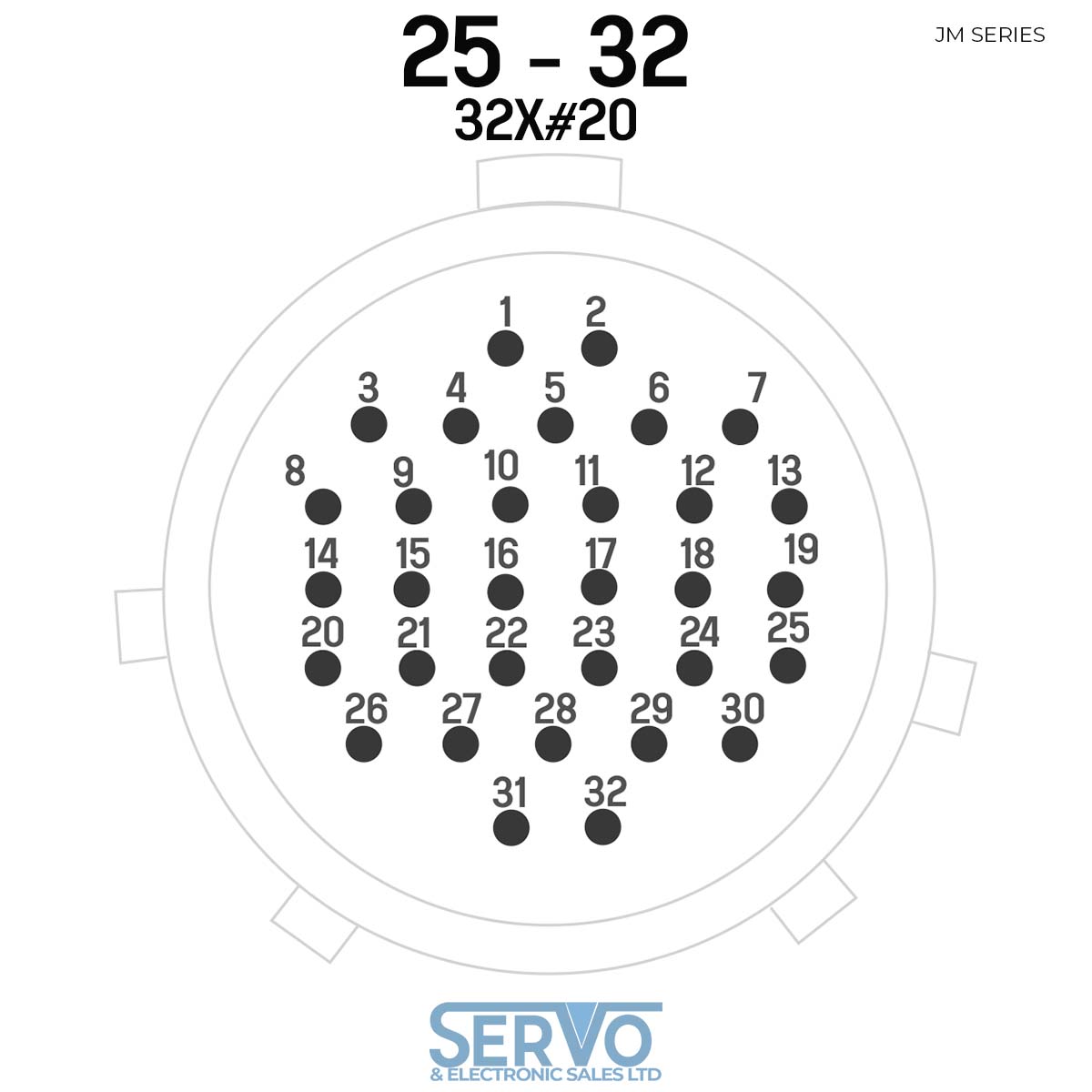

| Insert Arrangement | 25-32 |
| No of Contacts | 32 |
| Shell Material | Aluminium Alloy |
| Shell Plating | Trivalent Chromium Treatment(Black) |
| Shell Size | 25 |
| Mating Cycles | 500 |
Environmental Specifications
| Operating Temperature | -25°C to ＋ 85°C - -13°F to +185°F |
|---|---|
| RoHS Compliant | Yes |
| Salt Spray | 48 Hours |
Quality & Compliance
| Qualified | JIS-C-5432 |
|---|---|
| Series | JM Series |
