KRC24M9K
Available on back-order
Summary

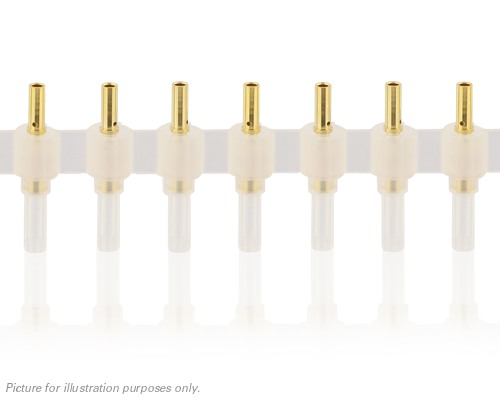

KRC24M9K, Female machined crimp contact, size #16, on a reel (2,000 pcs), Gold plating
KRC24M9K RC / RM #16 (1.6mm) screw machined contacts are snap-in pin and sockets are made from a high conductive copper alloy and available with a wide range of plating options, including gold, gold flash, and tin over nickel. The contacts are suitable for UTS, UT0, UTG, UTL, UTP, SMS, MBG connector series composed of #16 cavities, giving you flexibility to switch from one connector series to another without needing to change the crimping tools. Heat-treated beryllium copper locking springs assure proper locking and alignment of contacts in the housing, while the RC socket contacts have a closed entry design to prevent probe damages. These screw machined contacts can handle copper cores from AWG30 (0.05mm²) to AWG14 (2.5mm²) and we even offer coax options with RMDX and RCDX suitable for 50 or 75Ω, coaxial or twisted pair cable.
Full Description
KRC24M9K RC / RM #16 (1.6mm) screw machined contacts are snap-in pin and sockets are made from a high conductive copper alloy and available with a wide range of plating options, including gold, gold flash, and tin over nickel. The contacts are suitable for UTS, UT0, UTG, UTL, UTP, SMS, MBG connector series composed of #16 cavities, giving you flexibility to switch from one connector series to another without needing to change the crimping tools. Heat-treated beryllium copper locking springs assure proper locking and alignment of contacts in the housing, while the RC socket contacts have a closed entry design to prevent probe damages. These screw machined contacts can handle copper cores from AWG30 (0.05mm²) to AWG14 (2.5mm²) and we even offer coax options with RMDX and RCDX suitable for 50 or 75Ω, coaxial or twisted pair cable.
