MS27466T13F98PC
MS27466T13F98PC Square Flange Receptacle (Front Mounting), With thread for backfitting, supplied without backshell Shell Size 13 with Nickel Plating,10#20 Pin Contacts, C Orientation.
| Can Assemble In: | 48 Hours |
Technical Information
HE30800T1398PC6M
| Manufacturer: | Eaton Souriau |
| Shell Style: | Square Flange Receptacle |
| Shell Material: | Aluminium Alloy |
| Shell Plating: | Nickel |
| Shell Size: | 13 (C) |
| Contact Size: | 10#20 |
| Contact Gender: | Pin |
| Contact Type: | Crimp |
| Insert Arrangement: | 13 – 98 |
| Series: | MIL-DTL-38999 Series I |
| Specification: | Military Mil Spec |
| Cross Reference: | 8LT013F98PC HE30800T1398PC6M |
| Mates With: | |

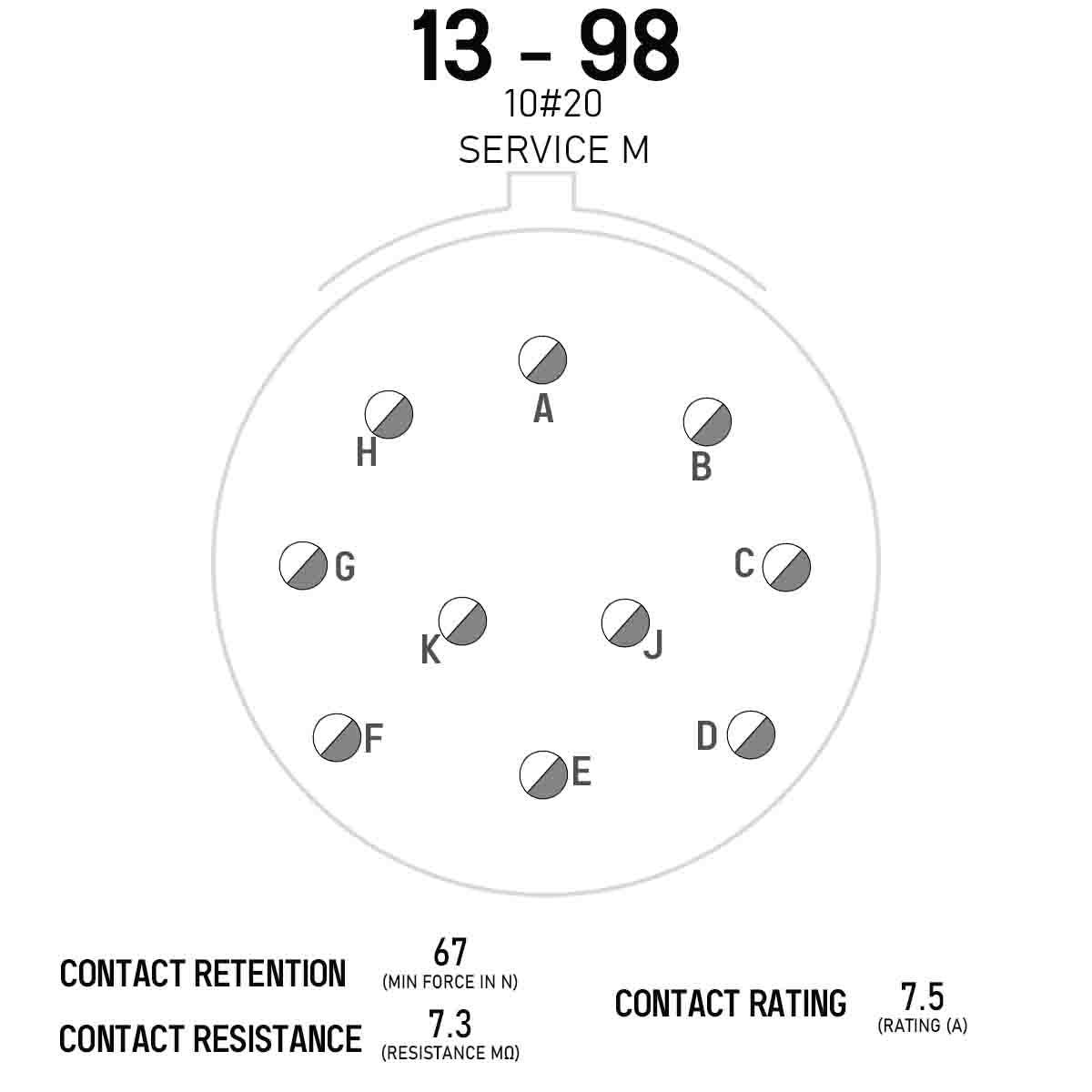

8LT Datasheet | Contact Layout
|
Technical Specifications
| Contact Gender | – |
|---|---|
| Insert Arrangement | – |
| Shell Material | Aluminium with Nickel Plating |
