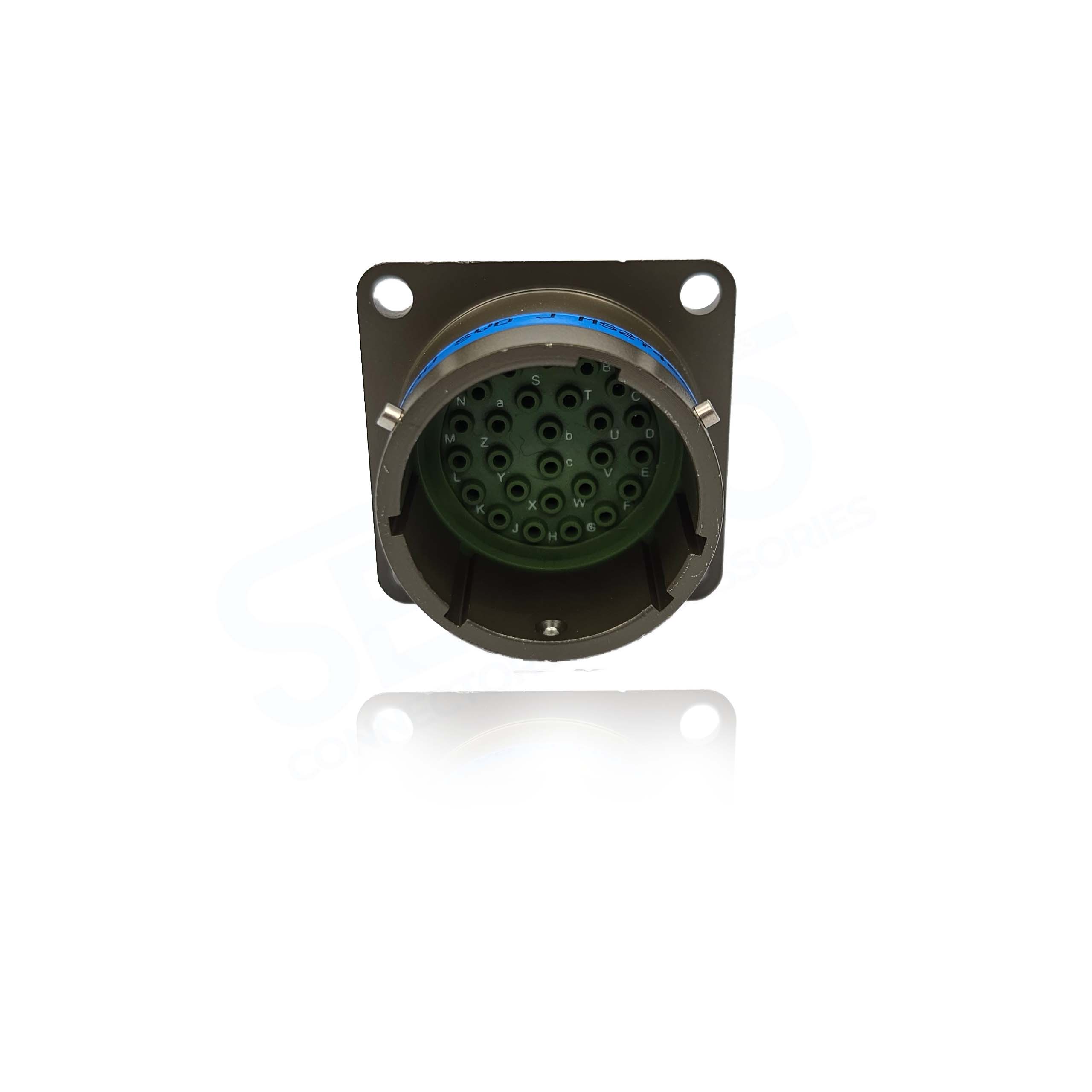

MS27466T17B26S Square Flange Receptacle (Front Mounting), With thread for backfitting, supplied without backshell Shell Size 17 with Olive Green Cadmium Plating,26#20 Socket Contacts.
Technical Information
| Manufacturer: |
Eaton Souriau |
| Shell Style: |
Square Flange Receptacle |
| Shell Material: |
Aluminium Alloy |
| Shell Plating: |
Olive Green Cadmium |
| Shell Size: |
17 (E) |
| Contact Size: |
26#20 |
| Contact Gender: |
Socket |
| Contact Type: |
Crimp |
| Insert Arrangement: |
17 – 26 |
| Series: |
MIL-DTL-38999 Series I |
| Specification: |
Military Mil Spec |
| Cross Reference: |
8LT017B26SN |
| Mates With: |
MS27467T17B26P
|
|
|
|
|
Contact Layout
|
