Eaton Souriau

MS27472T24B35PB

Summary

MS27472T24B35PB, Square Flange Receptacle (front mount with accessory threads) with 128#22D Pin Contacts, Shell Size 24, Olive Drab Cadmium Plating, B Orientation.

SKU: MS27472T24B35PB Category: Tags: ,

Full Description

Download Datasheet

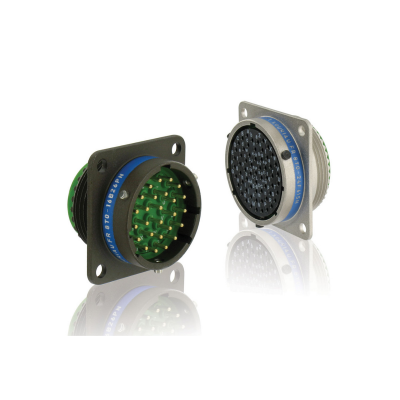

The 8T circular connector series conforms to MIL-C-38999 Series II provides an extreme compact solution to offer space optimisation, with its low profile bayonet system. The series features contact layouts from 1 – 28 contacts, 11 different shell sizes and 43 layouts. Eaton Souriau 8T Connectors are designed for applications requiring high-density connection systems.

Contact Gender

Pin

Contacts

Crimp

Insert Arrangement

24 – 35

Shell Styles

Square Flange Receptacle (Front Mounting)
