SM20ML1S18

Full Description

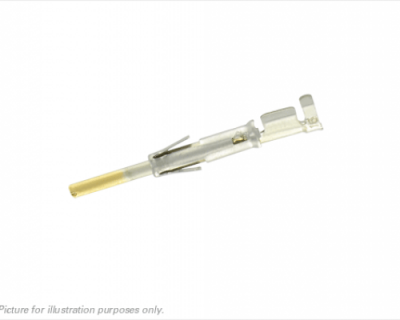

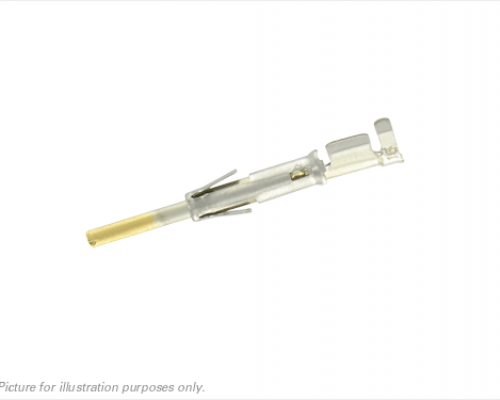

SM20ML1S18 Eaton Souriau SC / SM #16 (1.6mm) stamped and formed contacts feature a two-piece strip and formed crimp snap-in pin and sockets suitable for UTS, UT0, UTG, UTL, UTP, SMS, MBG connector series composed of #16 cavities, making them a versatile choice for a range of applications. The contact concept of the SC / SM #16 (1.6mm) stamped and formed contacts gives you the flexibility to switch between connector series without needing to change your crimping tools or invest in new qualifications. This means you can save time and money while still getting the electrical performance you need. Made from a high conductive copper alloy, the crimp body of these contacts provides optimal durability and reliability. In addition, the stainless steel retaining spring features retention in the housing cavity and a closed entry socket to prevent probe damage, ensuring that these contacts are of the highest quality. These contacts are available with a wide range of plating options, including gold, gold flash, tin over nickel plating, and selective plating, so you can customise them to meet your specific electrical performance requirements. The SC / SM #16 (1.6mm) stamped and formed contacts are standard available on strip and packaged with 3000 pieces on reel, making them an ideal solution for high-volume production with semi or even fully automatic crimp tooling. If you require lower volumes, a loose piece packaging option is also available, which is perfect for manual crimping processes. Choose the SC / SM #16 (1.6mm) stamped and formed contacts for their versatility, durability, and customisable plating options.
