UTS08D3AP

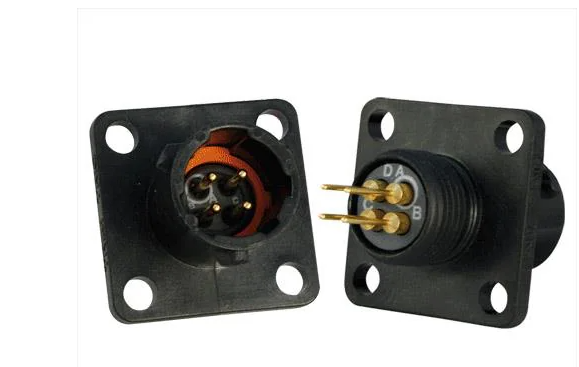

UTS08D3AP, Square Flange Receptacle, 8 with PCB Pin Contacts, N Orientation.
RoHS Compliant: Yes
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Square Flange Receptacle |
| Contact Gender | Pin – Male |
| Contact Size | 3#20 |
| Contacts Supplied | Yes |
| Coupling Style | 1/3 Bayonet |
| Insert Keyway | Normal |
| Insert Arrangement | 8-3 |
| No of Contacts | 3 |
| Shell Material | Thermoplastic UL94-V0 |
| Shell Size | 8 |
| Termination Method | PCB |
Environmental Specifications
| Operating Temperature | -40°C to +105°C – -40°F to +221°F |
|---|---|
| RoHS Compliant | Yes |
Quality & Compliance
| Qualified | No |
|---|---|
| Specification | UTS Series |
| Series | Trim Trio |
