UTS7147PSCR

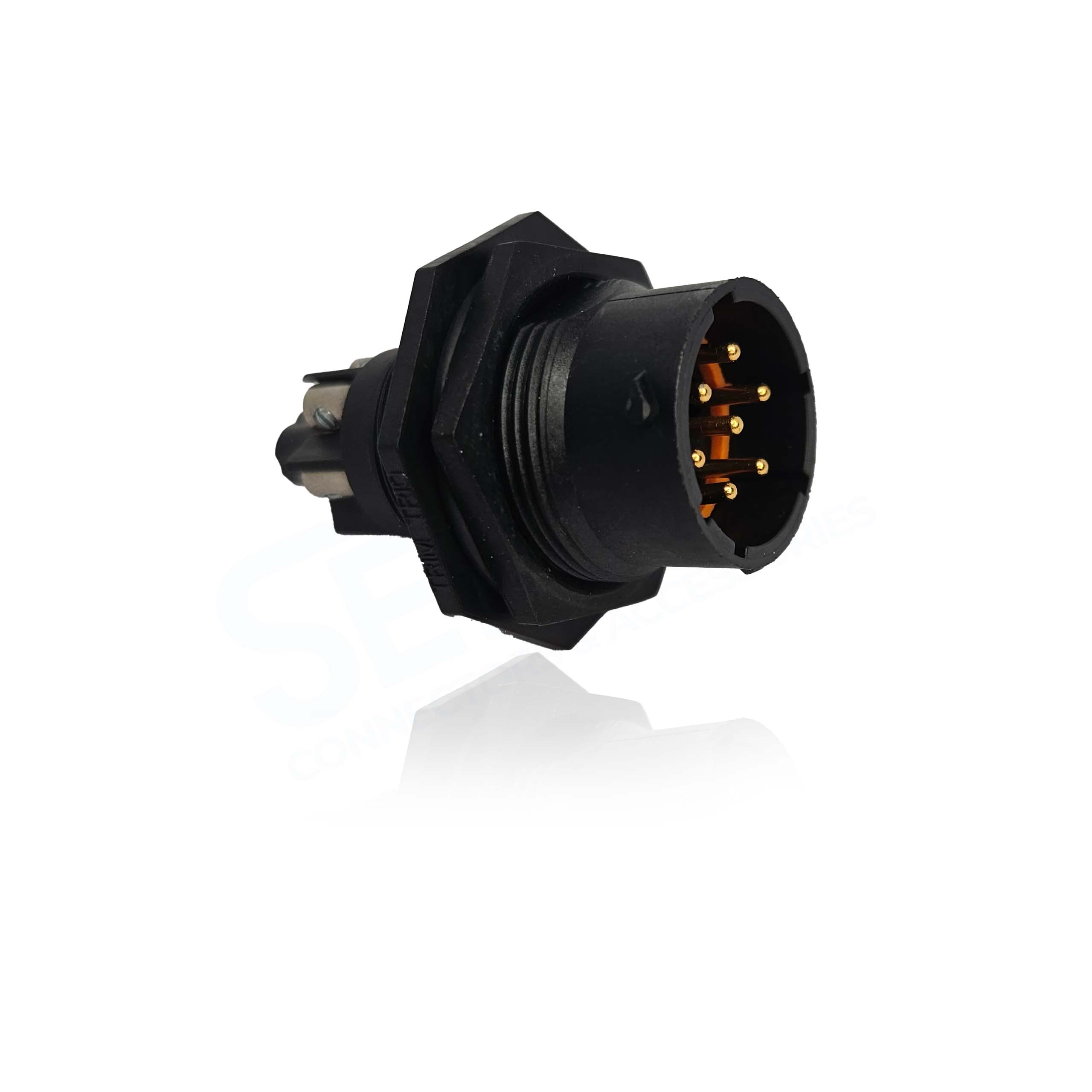

UTS7147SSCR, Jam Nut Receptacle without Backshell, Shell Size 14, 6 + Ground, 7 x #18 Female Screw Loaded Contacts
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Jam Nut Receptacle |
| Contact Gender | Pin - Male |
| Contact Size | 7#16 |
| Contacts Supplied | Yes |
| Coupling Style | 1/3 Bayonet |
| Insert Keyway | Normal |
| Insert Arrangement | 14-7 |
| No of Contacts | 7 |
| Shell Material | Thermoplastic |
| Shell Size | 14 |
| Termination Method | Screw Contacts Loaded |
Environmental Specifications
| Operating Temperature | -40°C to +105°C - -40°F to +221°F |
|---|---|
| RoHS Compliant | Yes |
Quality & Compliance
| Series | Trim Trio |
|---|
