VG95328C14-19SN

Full Description

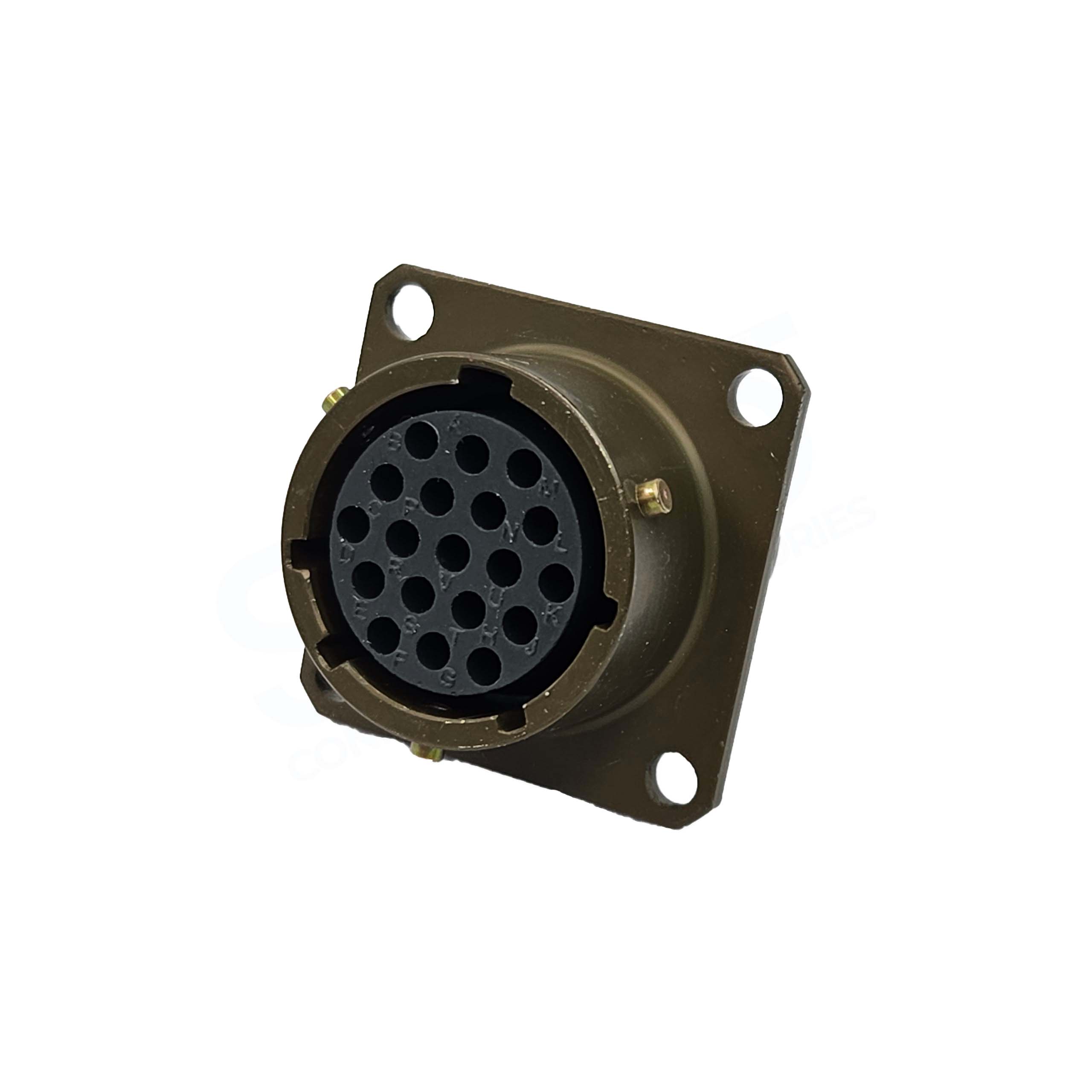

VG95328C14-19SN Bayonet-Lock Signal Connector, is the ultimate solution for high-performance military type cylindrical connectors with crimp-removable contacts. Perfectly suited for all general and environmental applications, this connector is designed to provide reliability and flexibility, even in the harshest of conditions. Featuring a bayonet mechanism that facilitates fast and easy coupling, this connector is ideally suited for use in awkward or hard-to-reach locations. With environmental protection up to IP67 levels, these connectors are perfect for use in machine tools and factory automation. The supplied crimp contacts are gold-plated copper alloy, ensuring optimal performance and longevity. Inserts made from high-insulation synthetic rubber are oil and temperature resistant from -55° C to +125° C, making them incredibly durable and reliable. The VG95328 series is qualified to VG95328 standards and is based on the MIL-C-26482 Series I standard, making it easy to use and highly reliable. The 3-point bayonet coupling mechanism provides positive locking resistance to vibration, shock, and other connector de-coupling forces, making it perfect for general-duty and environmental interconnect systems such as military and commercial aircraft, medical equipment, industrial controls, factory robotics, instrumentation, and other general electronic applications. These VG95328 connectors are available in aluminum alloy and supplied standard with an olive green cadmium finish IAW QQ-P-416. The high insulation synthetic rubber (Chloroprene) insulators are designed to withstand extreme temperatures and are perfectly suited for use in rugged applications where EEC compliance directives for electromagnetic compatibility is required. Additionally, a complete range of EMI shield termination accessories are available for both overall as well as individual wire shields.

Cross Reference:

VG95328C, MS 3122 E, IPT 02 SE
