Servo and Electronic Sales Ltd. Introduces the “Click Connect” Series
Servo and Electronic Sales Ltd. is excited to announce the expansion of our product offerings with the introduction of the innovative “Click Connect” Series. This range of compact, environmentally sealed connectors provides a robust and versatile solution for demanding applications across various industries.
Thank you for reading this post, don't forget to subscribe!The Click Connect Series stands out due to its construction from Ultem®, a high-temperature and corrosion-resistant composite material, making it the “ULTEMate” electrical connection solution. Designed to withstand the most rigorous conditions, these connectors are ideal for environments where reliability is paramount.
Key Features and Benefits of the Click Connect Series:
Exceptional Durability and Sealing: Constructed from Ultem® composite, the Click Connect series is chemical resistant and environmentally sealed to IP68 when mated and fitted with the correct backshell or overmould. They meet UL94 Class V-0 flammability requirements , ensuring performance even in extreme temperatures ranging from −55∘C to +150∘C. This allows them to be washed, sterilised, and autoclaved without performance degradation

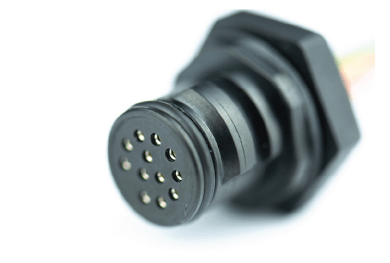

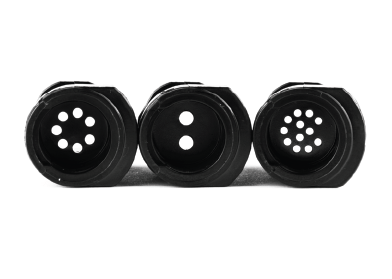

Versatile Configurations: The series is available in three planforms: 2, 7, and 12 contact arrangements, with wire gauges ranging from 16 to 22 AWG. This flexibility, combined with universal mounting options, makes them suitable for a wide array of engineering design requirements.
Flexible Mounting Options: Both the female plug and male receptacle can be used as panel connectors without modification by simply fitting a panel nut and flat washer.

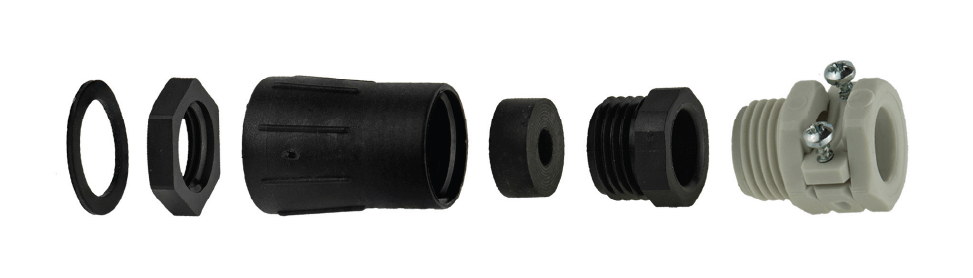

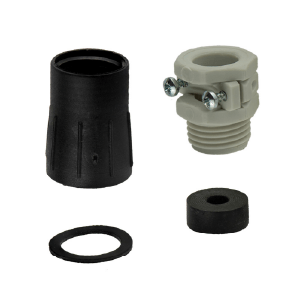

Comprehensive Accessories: Servo and Electronic Sales offers a full suite of accessories to complement the Click Connect connectors, including back fittings, compression screws, mounting hardware, and dust caps. Dust caps are available for both plug and receptacle, maintaining the environmental seal and include a lanyard for ease of use.
Enhanced Protection with Overmoulding: For a tamper-proof, factory-finished solution that significantly increases environmental sealing and strain relief, the Click Connect range can be overmoulded. This process completely prevents water ingress, even if the cable jacket is breached, and guarantees an IP seal that isn’t compromised during transport or field installation. Overmoulding also provides an aesthetically pleasing, professional, and stylish finish.

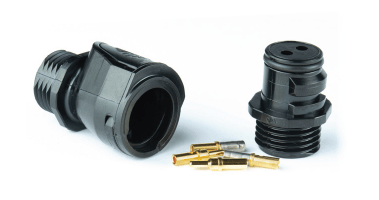

Dedicated Tools and Contacts: The Click Connect Series utilises special contacts and tools, with removal and crimp tools readily available to ensure seamless integration and maintenance. Solid contacts are available in sizes 16, 20, and 22, with corresponding current ratings of 13 Amps, 7.5 Amps, and 5 Amps respectively, and are gold plated copper alloy.
Applications and Industries:
With its Quick Latch Mechanism, the Click Connect series is designed for quick and secure connections, making it ideal for a wide range of industries where reliability is critical.
These robust connectors are suitable for a variety of demanding applications, including:
Industrial Automation and Machinery: Ideal for factories, manufacturing lines, and machinery where secure connections are crucial to maintaining smooth operations.
Automotive: Perfect for automotive electrical systems, offering reliable performance even under the demanding conditions of vehicle environments.
Electronic Devices: Designed for electronic devices that require efficient connections, making it a great option for a wide range of consumer and commercial products.
Marine and Underwater Applications: With overmoulded options available, the Click Connect series is suitable for environments where water resistance and durability are paramount. Our IP Rated Connectors will help you with these applications.
The versatility and robust performance of the Click Connect Series across various industries and challenging applications underscore its value to our customers.
“The Click Connect Series is a great addition to our portfolio, offering unparalleled durability and flexibility for our customers,” says Viki Young, Sales & Operations Manager, “We are confident that these connectors will meet and exceed the expectations of engineers and designers working in the most challenging environments.”
For more information on the Click Connect Series, including detailed specifications and ordering information, contact our sales team or visit the Click Connect series product page.
