| Manufacturer |
|---|
SMS12GE3
103 in stock (can be backordered)
Summary

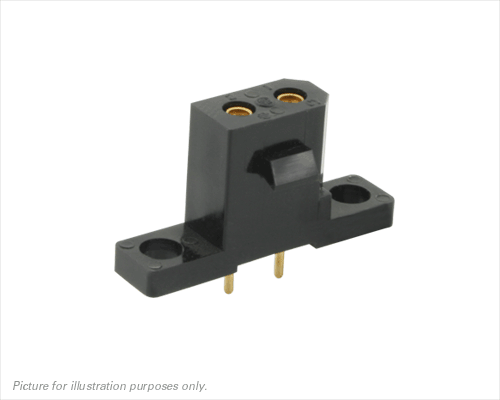

SMS12GE3, Straight board mount with female contact, Quick Mating, Pitch: 5.08mm, Solid Machined Contacts, 2.4mm Machined Contacts
SMS12GE3, is a plastic rectangular connector designed to meet your interconnect needs. With a quick mating mechanism, this connector allows for easy push-to-mate and press-and-release-to-unmate. Available in 3 to 36 positions, its wire and PCB versions, along with an array of accessories, make it a complete solution to connect your equipment. Boasting pin-protection skirts and positive polarization, the plug and receptacles with or without integrated strain relief hoods offer a pitch of 5.08mm and low-profile version for tight spaces, and high-density applications without compromising signal integrity. The temperature range for the standard SMS series spans from -55° to +105°C, whilst the flame retardant version, it is between -40° and +105°C. It is a versatile connector that is compliant with EN 50467, UL recognized (file number E238675), and CSA certified (file number LR44961-21) for your peace of mind and equipment safety. It also offers an IP rating of IP40, and it can tolerate up to 500 mating cycles. The flammability rating of the SMS black version is UL94 V2, while that of the SMS white version is UL94 V0. Furthermore, the SMS white version has been certified to I3F2/I2F3 according to the NFF 16101 / 16102 and R23/HL3 according to the EN 45 545 regulations.
Full Description
SMS12GE3, is a plastic rectangular connector designed to meet your interconnect needs. With a quick mating mechanism, this connector allows for easy push-to-mate and press-and-release-to-unmate. Available in 3 to 36 positions, its wire and PCB versions, along with an array of accessories, make it a complete solution to connect your equipment. Boasting pin-protection skirts and positive polarization, the plug and receptacles with or without integrated strain relief hoods offer a pitch of 5.08mm and low-profile version for tight spaces, and high-density applications without compromising signal integrity. The temperature range for the standard SMS series spans from -55° to +105°C, whilst the flame retardant version, it is between -40° and +105°C. It is a versatile connector that is compliant with EN 50467, UL recognized (file number E238675), and CSA certified (file number LR44961-21) for your peace of mind and equipment safety. It also offers an IP rating of IP40, and it can tolerate up to 500 mating cycles. The flammability rating of the SMS black version is UL94 V2, while that of the SMS white version is UL94 V0. Furthermore, the SMS white version has been certified to I3F2/I2F3 according to the NFF 16101 / 16102 and R23/HL3 according to the EN 45 545 regulations.
