MIL-DTL-38999 Series III Type │ 8D Series │D38999 Circular Connectors
MIL-DTL-38999 Series III – MIL-C-38999 Series III Connectors for Military, Aerospace & Industrial Applications
The 8D Series of circular connectors is designed to withstand requirements of industrial, military and aerospace applications, built to MIL-DTL-38999, EN3645 and BACC standards, meeting or exceeding requirements for durability and performance. The 8D series is the most advanced circular connector range in the Eaton Souriau MIL-DTL-38999 Series III series, promoting high contact density, quick screw coupling mechanisms and high resistance to harsh environments. Connectors within this range can accommodate up to 128 #22D contacts with a range of contact types including PC Tail, Crimp, Solder Cup, Wire Wrap, Quadrax, Coax, Twinax, Triax, ELIO Fiber Optic and Expanded beam. With five materials and platings to choose from including Aluminum, Composite, Stainless Steel, Titanium and Bronze.
Servo & Electronic Sales Ltd is a value-added distributor for Eaton Souriau 8D Circular Connectors with a turnaround of 48 Hours for standard series and 72 Hours for K Class (Stainless Steel).
8D Main Features
D38999/20 Type │Square Flange Receptacle (8D0)
D38999/20 Type │Square Flange Receptacle (8D0)
The 8D0 (D38999/20 Type) is a Square Flange Receptacle featuring four-hole square flange for easy mounting.
| Manufacturer | Connector Series | Mating Half |
| MIL-DTL-38999 Series III | D38999/20 | D38999/26 |
| Eaton Souriau | 8D0 | 8D5 |
D38999/24 Type │Jam Nut Receptacle (8D7)
D38999/24 Type │Jam Nut Receptacle (8D7)

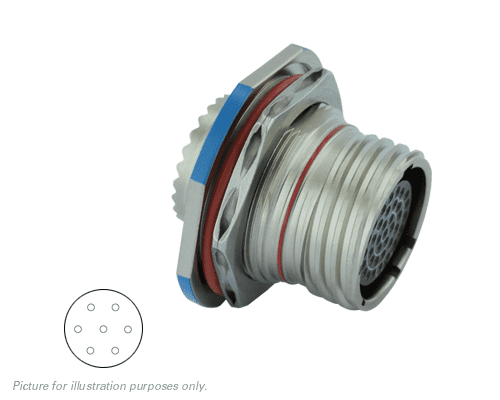

The 8D7 (D38999/24 Type) is a Jam Nut Receptacle with single-hole mounting and an integrated O-ring.
| Manufacturer | Connector Series | Mating Half |
| MIL-DTL-38999 Series III | D38999/24 | D38999/26 |
| Eaton Souriau | 8D7 | 8D5 |
D38999/26 Type │Plug with RFI Shielding (8D5)
D38999/26 Type │Plug with RFI Shielding (8D5)
The 8D25 (D38999/26 Type) is a Plug with RFI sheilding which mates with all MIL-DTL-Series III receptacles.
| Manufacturer | Connector Series | Mating Half |
| MIL-DTL-38999 Series III | D38999/26 | D38999/20, D38999/24 |
| Eaton Souriau | 8D5 | 8D0, 8D1, 8D7 |

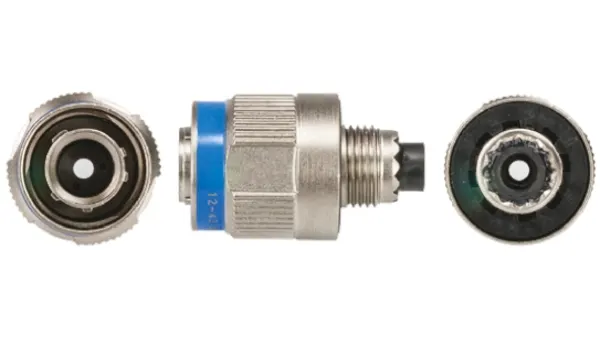

In-Line Receptacle (8D1)
In-Line Receptacle (8D1)
The 8D1 is an In-Line Receptacle mounts on cable cords, the 8D1 series is compatible with all D38999 Series III plugs.
| Manufacturer | Mating Half |
| MIL-DTL-38999 Series III | D38999/26 |
| Eaton Souriau | 8D5 |
Hermetic MIL-DTL-38999 Series III Type Connectors
The Hermetic 8D Series consists of receptacle connectors with threaded coupling system designed to withstand harsh environments within aerospace applications, built to MIL-DTL-38999 and EN3645 standards, meeting or exceeding requirements for durability and performance. The Hermetic 8D series consists of Eaton Souriau and Detoronics, who both supply equivalents to the Mil-Spec Hermetic range. Hermetic connectors feature glass-fused inserts to create an airtight seal, compatible with all D38999 Plugs. The Eaton Soruiau 8D Series features signal and power contacts up to size #4 with Square Flange Receptacle (8D0), Solder Mount Receptacle (8D1), Weld Mount Receptacle (8D4) and Jam Nut Receptacle (8D7). The Detoronics DJLT Series includes Solder Cup, Eyelet and Feedthrough Contacts with Square Flange Receptacle (DJLHT21), Solder Mount Receptacle (DJLHT25), Weld Mount Receptacle (DJLHT27) and Jam Nut Receptacle (DJLHT23)
D38999/21 Type │Hermetic Square Flange Receptacle (8D0 / DJLHT21)
D38999/21 Type │Hermetic Square Flange Receptacle (8D0/ DJLTH21)
The 8D0/ DJHLT21 (D38999/21 Type) is a Square Flange Receptacle Hermetic Connector is intermateable with all D38999 Plugs.
| Manufacturer | Connector Series | Mating Half |
| MIL-DTL-38999 Series III | D38999/21 | D38999/26 |
| Eaton Souriau | 8D0 | 8D5 |
| Detoronics | DJHT21 | Any D38999 Plug |
D38999/23 Type │Hermetic Jam Nut Receptacle (8D7 / DJLHT23)
D38999/23 Type │Hermetic Jam Nut Receptacle (8D7/ DJLTH23)
The 8D7/ DJHLT23 (D38999/23 Type) is a Jam Nut Receptacle Hermetic Connector is intermateable with all D38999 Plugs.
| Manufacturer | Connector Series | Mating Half |
| MIL-DTL-38999 Series III | D38999/23 | D38999/26 |
| Eaton Souriau | 8D7 | 8D5 |
| Detoronics | DJHT23 | Any D38999 Plug |
D38999/25 Type │Hermetic Solder Mount Receptacle (8D1 / DJLHT25)
D38999/25 Type │Hermetic Solder Mount Receptacle (8D1/ DJLTH25)
The 8D1/ DJHLT25 (D38999/23 Type) is a Jam Nut Receptacle Hermetic Connector is intermateable with all D38999 Plugs.
| Manufacturer | Connector Series | Mating Half |
| MIL-DTL-38999 Series III | D38999/25 | D38999/26 |
| Eaton Souriau | 8D1 | 8D5 |
| Detoronics | DJHT25 | Any D38999 Plug |
D38999/27 Type │Hermetic Weld Mount Receptacle (8D4 / DJLHT27)
D38999/25 Type │Hermetic Solder Mount Receptacle (8D4/ DJLTH25)
The 8D4/ DJHLT25 (D38999/23 Type) is a Jam Nut Receptacle Hermetic Connector is intermateable with all D38999 Plugs.
| Manufacturer | Connector Series | Mating Half |
| MIL-DTL-38999 Series III | D38999/27 | D38999/26 |
| Eaton Souriau | 8D4 | 8D5 |
| Detoronics | DJHT27 | Any D38999 Plug |
D38999/27 Type │Hermetic Weld Mount Receptacle (8D4 / DJLHT27)
D38999/25 Type │Hermetic Solder Mount Receptacle (8D4/ DJLTH25)
The 8D4/ DJHLT25 (D38999/23 Type) is a Jam Nut Receptacle Hermetic Connector is intermateable with all D38999 Plugs.
| Manufacturer | Connector Series | Mating Half |
| MIL-DTL-38999 Series III | D38999/27 | D38999/26 |
| Eaton Souriau | 8D4 | 8D5 |
| Detoronics | DJHT27 | Any D38999 Plug |
